Helitin high precision CCD CAMERA READER automatical contour cutting plotter 49"

FOB Reference Price:Get Latest Price
10 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Shaanxi, China (Mainland)
Brand Name:
HELITIN
Model Number:
R1350BA
Voltage:
100V-240V, 50-60Hz / Auto Switch
Cache Capacity:
2M
Paper Feed Width:
1350mm
Cutter Pressure:
20-1000g
Cutting Width:
1200mm
Cutting Speed:
20-1200mm/s
Driver:
Servo motor
Cutting Length:
unlimited
Repeat Cutting:
Yes
Size:
1620*390*380mm
Thickness of cutting media:
0.2-1mm vinyl sticker
Minimum character size:
Approximately 2-3 mm for alphanumeric characters
Offset value:
0~1.0 mm
Mechanical resolution:
0.0125mm
Repeatability precision:
0.1mm
Compatible cutter type:
Supersteel cutter blades
warranty:
12 months
Interfaces:
Serial RS-232C/ USB 2.0 High Speed
Compatible software:
Corel draw/Adobe illustrator/Master/Flexi Auto Mark/WINPC sign/Signcut
Control panel:
One liquid crystal display, 9 silica key, 3 lights,
Packaging & Delivery
Packaging Details
Packaging Details: Accessory Parts: USB cable,user manual,date cable,blade,blade holder,pen,warranty card,inspection card,disk, HELITIN standard package with carton box & outside plastic bag.
Port
Shanghai/Guangzhou/Qingdao or other main port in China
Lead Time :
Within 7 working days after payment confirmation

Specifications

1.automatically contour cutting plotter
2.Unique steel thorn Class A feed roller
3.Assure 5 meters tracking
4.CE

Helitin high precision CCD CAMERA READER automatical contour cutting plotter 49"



Parameter:

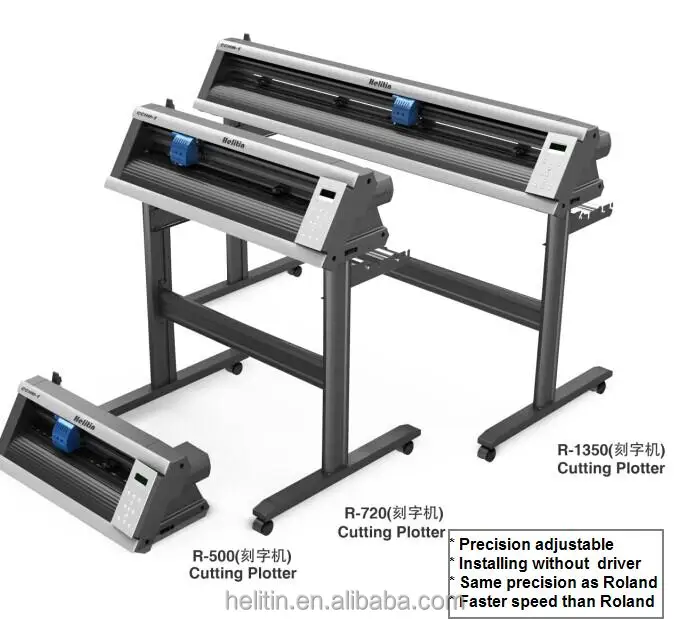

Model

R500AA

R500BA

R720AA

R720BA

R1350AA

R1350BA

Appearance

Desktop(without stents)

With stents/ desktop

With stents

Max cutting   width

400mm(15inches)

620mm (24inches)

1250mm(49inches)

Max feeding width

500mm(19inches)

720mm(28inches)

1350mm(53inches)

Drive system

stepper/servo motor

Cutting pressure

20-500g/20-1000

Max cutting speed

20-800/1200mm/s(stepper/servo motor)

Mechanical resolution

0.05 mm/0.1% tolerance(Max)

Offset value

0~1.0 mm (spacing increment 0.025mm)

Mechanical resolution

0.0125mm

Software resolution

0.0125 mm

Interfaces

USB/RS232

Expansion port 1

Internet access (Optional)

Expansion port 2

U disk

Command modes

HP-GL, HP-GL/2

Compatible software

Flexi Auto Mark

Standard set(free)

Helitin Blade holder(one), Blade(three)

Control panel

One liquid crystal display, 10 silica key, Chinese and English operation interface

Machine size (L*W*H)

656x292x263mm

   876x292x263mm

1506x292x263mm

Carton size (L*W*H)

790x380x380mm

1000x380x380mm

1630x380x380mm

GW

20KG

26KG

35KG

Rated power supply

100V-240V, 50/60Hz (Auto switch)

Rated Power consumption

Max 110W

Environmental Humidity

20% ~ 80% relative humidity

Working Temperature

0°C~45°C/32°F~125°F



Special characters:













Vedio show:

http://www.youtube.com/watch?v=aY8LeGncslA
http://www.youtube.com/watch?v=qZqCXqimlUY (5m cutting show)

https://www.youtube.com/watch?v=aasrUAbF4Fs&feature=plcp (contour cutting )

https://www.youtube.com/watch?v=KgHa4Rq_C1c&feature=plcp (Unique structure design)


https://www.youtube.com/watch?v=BWzxEYhbFLA&feature=plcp (Checking accuracy)

 (Automatically contour cutting vedio show)


 Graphtec appearance contour cutting plotter with manual positioning:
